Tissue Equivalent Ultrasound Prostate Phantom

Model 053S, 053L & 053L-EF
THE IDEAL TRAINING DEVICE FOR ULTRASOUND GUIDED PROCEDURES

The CIRS Ultrasound Prostate Training Phantom is a multi-modality disposable phantom developed for practicing procedures which involve scanning the prostate with a rectal probe.

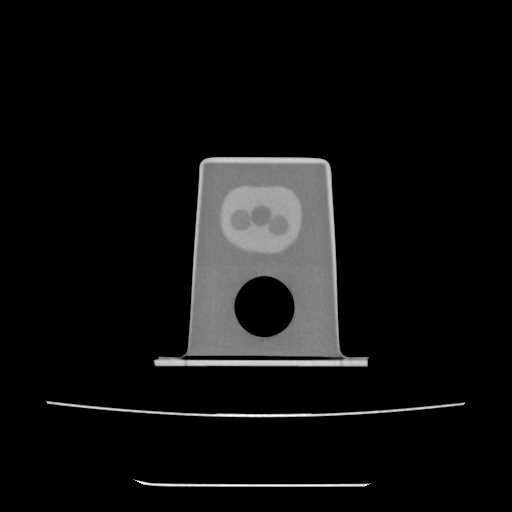

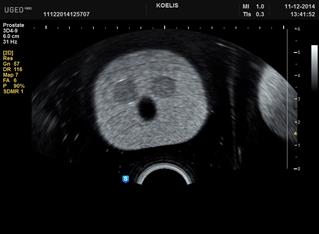

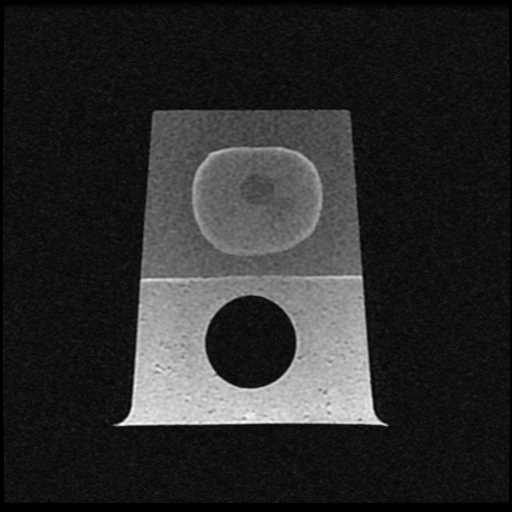

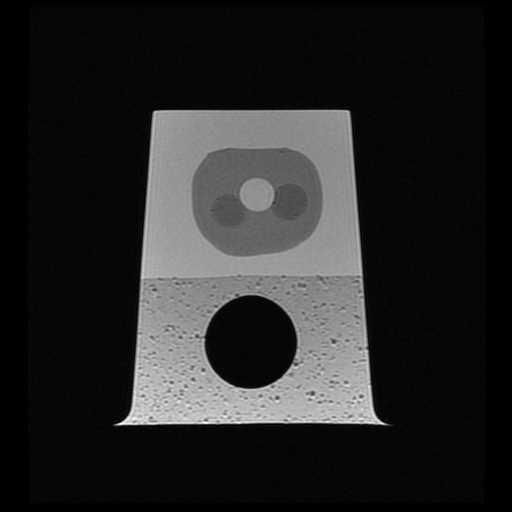

Gel formulations within the Model 053S, 053L and 053L-EF are designed to minimize needle tracking and to provide imaging contrast under CT, MRI, ultrasound and elastography.

The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 x 7.0 x 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate. This phantom is an ideal training device for ultrasound guided cryosurgery, radioactive seed implantation, and needle biopsy.

The phantom is available with lesions (053L) and without lesions (053S) and can be ordered in either the standard side-fire configuration or an alternate geometry optimized for end-fire probes (053L-EF).

Features:
  • Includes rectal wall, seminal vesicles, perineal membrane and urethra
  • Train for ultrasound-guided cryosurgery, seed implantation and needle biopsy with one phantom
  • Compatible with various probes and surgical tools
  • Structures visible under CT, MRI, ultrasound and elastography
  • Gel designed to minimize needle tracking

Data Sheet

Tissue Equivalent Ultrasound Prostate Phantom: Data Sheet

Smith, Blake R; Strand, Sarah A; Dunkerley, David; Flynn, Ryan T; Besemer, Abigail E; Kos, Jennifer D; Caster, Joseph M; Wagner, Bonnie S; Kim, Yusung; 'Implementation of a real‐time, ultrasound‐guided prostate HDR brachytherapy program'. Journal of Applied Clinical Medical Physics. 2021; View

Summary: A workflow for commissioning of the Ocentra Prostate treatment planning system used in real-time, ultrasound-guided HDR brachytherapy is decribed. Image quality tests, as recommended in the AAPM Task Group 128 report, was performed with the Model 45B Brachytherapy QA phantom while end-to-end testing was performed with the Model 53L prostate phantom.
Doyle, Andrea J; Sullivan, Frank; Walsh, John; King, Deirdre M; Cody, Dervil; Browne, Jacinta E; 'Development and Preliminary Evaluation of an Anthropomorphic Trans-rectal Ultrasound Prostate Brachytherapy Training Phantom'. Ultrasound in Medicine & Biology. 2021; 47 (3): 833-846. Elsevier. View
Maris, Bogdan; Tenga, Chiara; Vicario, Rudy; Palladino, Luigi; Murr, Noe; De Piccoli, Michela; Calanca, Andrea; Puliatti, Stefano; Micali, Salvatore; Tafuri, Alessandro; 'Toward autonomous robotic prostate biopsy: a pilot study'. International Journal of Computer Assisted Radiology and Surgery. 2021; 9-Jan. Springer. View
Mahcicek, Davut Ibrahim; Yildirim, Korel D; Kasaci, Gokce; Kocaturk, Ozgur; 'Preliminary Evaluation of Hydraulic Needle Delivery System for Magnetic Resonance Imaging-Guided Prostate Biopsy Procedures'. Journal of Medical Devices. 2021; 15 (4): 41002. American Society of Mechanical Engineers. View
Mathur, Prateek; 'Transperineal ultrasound image guidance system for robot-assisted laparoscopic radical prostatectomy'. 2020; University of British Columbia. View
Morris, D Cody; Chan, Derek Y; Lye, Theresa H; Chen, Hong; Palmeri, Mark L; Polascik, Thomas J; Foo, Wen-Chi; Huang, Jiaoti; Mamou, Jonathan; Nightingale, Kathryn R; 'Multiparametric Ultrasound for Targeting Prostate Cancer: Combining ARFI, SWEI, QUS and B-Mode'. Ultrasound in Medicine & Biology. 2020; 46 (12): 3426-3439. Elsevier. View
Kemper J, Burkholder A, Jain A, et al. TU-EE-A1-06: Transrectal Fiducial Carrier for Radiographic Image Registration in Prostate Brachytherapy. Medical Physics. 2005; 32(6).  View
Tremblay C, Gingras L, Archambault L, et al. SU-FF-T-232: Characterization and Use of MOSFET as In Vivo Dosimeters under 192Ir Irradiation for Real-Time Quality Assurance. Medical Physics. 2005; 32(6).  View
Onik G, Downey D, Fenster A. Three-dimensional sonographically monitored cryosurgery in a prostate phantom. Journal of Ultrasound in Medicine. 1996; 15(3):267-270.  View
Seifabadi, Reza. "TELEOPERATED MRI‐GUIDED PROSTATE NEEDLE PLACEMENT." Thesis. Queen's University, Canada, 2013.  View
Ukimura O, Desai MM, Palmer S, et al. 3-Dimensional elastic registration system of prostate biopsy location by real-time 3-dimensional transrectal ultrasound guidance with magnetic resonance/transrectal ultrasound image fusion. J Urol. 2012;187(3):1080-6.  View
Wang, Y., D. Ni, M. Xu, X. Xie, and PA Heng. "Patient-specific Deformation Modelling via Elastography: Application to Image-guided Prostate Interventions." Scientific Reports, 07 June 2016. Web.  View
Kim, ST, Y. Kim, and J. Kim. "Design of an MR-compatible Biopsy Needle Manipulator Using Pull-pull Cable Transmission." Korean Society for Precision Engineering, 10 Sept. 2016. Web.  View
Fedorov, A., K. Tuncali, L. Panych, et al. "Segmented Diffusion-weighted Imaging of the Prostate: Application to Transperineal In-bore 3 T MR Image-guided Targeted Biopsy." Elsevier, 2016. Web.
Boroomand, A., E. Li, MJ Shafiee, et al . "A Unified Bayesian-based Compensated Magnetic Resonance Imaging." ResearchGate, 2016. Web.
Palladino, Luigi; Maris, Bogdan; Antonelli, Alessandro; Fiorini, Paolo; 'PROST-Net: A deep learning approach to support real-time fusion in prostate biopsy'. View
